Laboratory 3 - complex arithmetic expressions

In this lab: complex arithmetic expressions (additions, subtractions, multiplications, divisions, conversions, variable declarations).

Theory

Arithmetic instructions

  • ADC - Add with Carry,
  • SBB - Integer Subtraction with Borrow,
  • IMUL - Signed Multiply,
  • IDIV - Signed Divide.

Signed conversion instructions

  • CBW - Convert Byte to Word
  • CWD - Convert Word to Doubleword (DX:AX ← sign-extend of AX)
  • CWDE - Convert Word to Doubleword (EAX ← sign-extend of AX)
  • CDQ - Convert Doubleword to Quadword (EDX:EAX ← sign-extend of EAX)

Unsigned conversions

There are no instructions for conversions in the unsigned representation! In assembly language, the unsigned conversions are done by putting 0 in the high byte, word or doubleword:

mov AH,0 ; for converting AL → AX
mov DX,0 ; for converting AX → DX:AX
mov EDX,0 ; for converting EAX → EDX:EAX

Declaring variables / constants

  • Declaring variables and assigning an initial value:
a DB 0A2h ;declaring the variable a of type BYTE and initialising it with the value 0A2h
b DW 'ab' ;declaring the variable a of type WORD and initialising it with the value 'ab'
c DD 12345678h ;declaring the variable a of type DOUBLE WORD and initialising it with the value 12345678h
d DQ 1122334455667788h ;declaring the variable a of type QUAD WORD and initialising it with the value 1122334455667788h
  • Declaring variables without assignment (reserve space in memory):
a RESB 1 ;reserving 1 byte
b RESB 64 ;reserving 64 bytes
c RESW 1 ;reserving 1 word
  • Defining constants:
ten EQU 10 ;defining the constant ten that has the value 10

Notations

<op8>    - operand on 8 bits
<op16>   - operand on 16 bits
<op32>   - operand on 32 bits

<reg8>   - register on 8 bits
<reg16>  - register on 16 bits
<reg32>  - register on 32 bits
<reg>    - register
<regd>   - destination register
<regs>   - source register

<mem8>   - memory variable on 8 bits
<mem16>  - memory variable on 16 bits
<mem32>  - memory variable on 32 bits
<mem>    - memory variable

<con8>   - constant (immediate value) on 8 bits
<con16>  - constant (immediate value) on 16 bits
<con32>  - constant (immediate value) on 32 bits
<con>    - constant (immediate value)

Little endian representation

  1. Each byte has an address (the byte being the smallest addressable unit of memory)
  2. An address identifies in a unique way a location in memory, and x86 processors assign each byte location a separate memory address
  3. x86 processors store and retrieve data from memory using little endian order (the byte representing the „end” of the number will be stored at the „little”-est address):
    1. The least significant byte is stored at the beginning of that memory area (at the address where allocation for the data begins).
    2. The remaining bytes are stored in reverse order in the next consecutive memory positions.

(much more clearer as an informal statement: if we have on paper or in a register a 4 bytes number and we denote the order of these bytes as 1 2 3 4 , in the memory the little-endian representation will store that number in the reverse order of its bytes: 4 3 2 1).

Careful ! – only the BYTES order is reversed in memory, NOT the BITS inside that bytes !!!!! The order of the bits which compose each byte remains the same !

For instance, if we have the following data segment:
a db 12h
b dw 3456h
c dd 7890abcdh
d dq 1122334455667788h

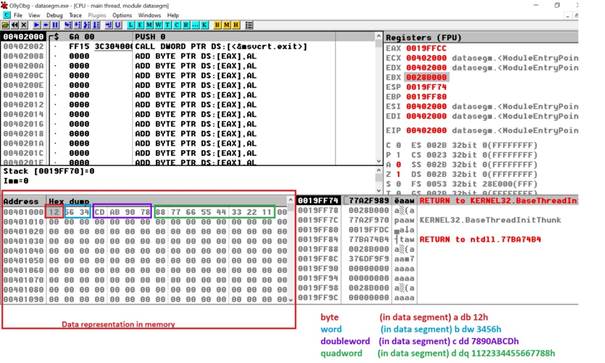

Data representation in memory will be as shown in the lowest left corner from the below debugger configuration:

debugger

Example 1: Addition: quadword+quadword

bits 32 ;assembling for the 32 bits architecture
; the start label will be the entry point in the program
global  start

extern  exit ; we inform the assembler that the exit symbol is foreign, i.e. it exists even if we won't be defining it

import  exit msvcrt.dll; exit is a function that ends the process, it is defined in msvcrt.dll
        ; msvcrt.dll contains exit, printf and all the other important C-runtime functions
segment  data use32 class=data ; the data segment where the variables are declared
	a dq 1122334455667788h
	b dq 0abcdef1a2b3c4d5eh
	r resq 1 ; reserve 1 quadword in memory to save the result
; our code starts here
segment  code use32 class=code ; code segment
start:
	;11223344  55667788 h -> EDX : EAX
	;   EDX   :   EAX
	mov eax, dword [a+0]
	mov edx, dword [a+4]

	;  abcdef1a 2b3c4d5e h  -> ECX : EBX
	;  ECX     :   EBX
	mov ebx, dword [b+0]
	mov ecx, dword [b+4]

	;a + b
	; edx :  eax +
	; ecx :  ebx
	clc ; clear Carry Flag (punem 0 in CF)
	add eax, ebx  ; eax=  eax+ebx
	adc edx, ecx ; edx =  edx+ecx + CF
	;(CF is set is add eax, ebx produce a carry)

	;edx:eax  -> r
	mov dword [r+0], eax
	mov dword [r+4], edx
	push  dword 0  ; push  the parameter for exit onto the stack
	call  [exit] ; call exit to terminate the program

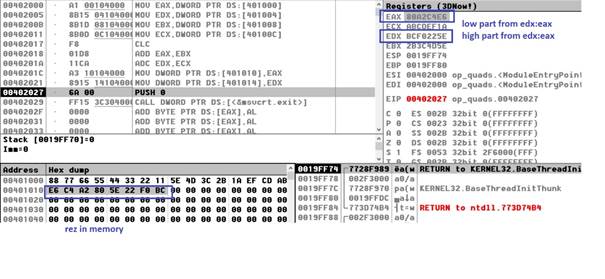

Step 1 – before perform the addition before addition

Step 2 – after addition after addition

Example 2. Division: quadword/doubleword

bits 32 ;assembling for the 32 bits architecture
; the start label will be the entry point in the program
global  start

extern  exit ; we inform the assembler that the exit symbol is foreign, i.e. it exists even if we won't be defining it

import  exit msvcrt.dll; exit is a function that ends the process, it is defined in msvcrt.dll
        ; msvcrt.dll contains exit, printf and all the other important C-runtime functions
segment  data use32 class=data ; the data segment where the variables are declared
	m dq 1122334455667788h
	n  dd 0ccddeeddh
	rezd  resd 1
	; our code starts here
segment  code use32 class=code ; code segment
start:
	mov  ebx, [n]

	;11223344  55667788 h -> EDX : EAX
	;   EDX   :   EAX
	mov eax, dword [m+0]
	mov edx, dword [m+4]

	div ebx ; edx:eax/ebx=eax cat si edx rest

	mov dword[rezd], eax

	push  dword 0  ; push  the parameter for exit onto the stack
	call  [exit] ; call exit to terminate the program

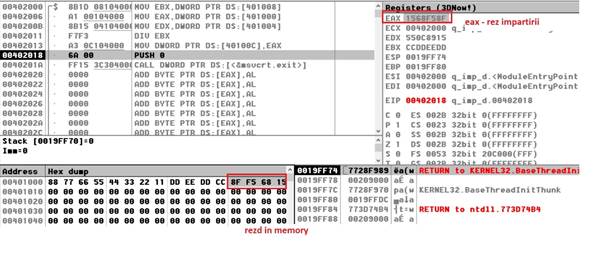

Debugger debugger

Example - arithmetic expressions

Unsigned representation

; Write a program in assembly language which computes one of the following arithmetic expressions, considering the following domains for the variables:
; a - doubleword; b, d - byte; c - word; e - qword
; a + b / c - d * 2 - e
bits 32 ;assembling for the 32 bits architecture
; the start label will be the entry point in the program
global  start

extern  exit ; we inform the assembler that the exit symbol is foreign, i.e. it exists even if we won't be defining it

import  exit msvcrt.dll; exit is a function that ends the process, it is defined in msvcrt.dll
        ; msvcrt.dll contains exit, printf and all the other important C-runtime functions
segment  data use32 class=data ; the data segment where the variables are declared
	a dd 125
	b db 2
	c dw 15
	d db 200
	e dq 80
segment  code use32 class=code ; code segment
start:
	;for computing b/c, we convert b from byte to doubleword, so that we can divide it by the word c
	mov al, [b]
	mov ah, 0 ;unsigned conversion from al to ax
	mov dx, 0 ;unsigned conversion from ax to dx:ax
	;dx:ax = b
	div word [c] ;unsigned division dx:ax by c
	;ax=b/c
	;catul impartirii este in ax (restul este in dx, dar mergem mai departe doar cu catul)

	mov bx, ax ;we save b/c in bx so that we can use ax for multiplying d by 2
	mov al, 2
	mul byte [d] ;ax=d*2

	sub bx, ax ;bx = b / c - d * 2
	; we convert the word bx to doubleword so that we can add it with the doubleword a
	mov cx, 0 ; unsigned conversion from bx to cx:bx
	;cx:bx=b/c-d*2

	mov ax, word [a]
	mov dx, word [a+2] ;dx:ax=a

	add ax, bx
	adc dx, cx ;dx:ax = a + b / c - d * 2

	push dx
	push ax
	pop eax ;eax = a + b / c - d * 2

	mov edx, 0 ;edx:eax = a + b / c - d * 2
	sub eax, dword [e]
	sbb edx, dword [e+4] ;edx:eax = a + b / c - d * 2 - e

	push   dword 0 ;saves on stack the parameter of the function exit
	call   [exit] ; function exit is called in order to end the execution of the program

Signed representation

; Write a program in the assembly language that computes the following arithmetic expression, considering the following data types for the variables:
; a - doubleword; b, d - byte; c - word; e - qword
; a + b / c - d * 2 - e
bits 32 ;assembling for the 32 bits architecture
; the start label will be the entry point in the program
global  start

extern  exit ; we inform the assembler that the exit symbol is foreign, i.e. it exists even if we won't be defining it

import  exit msvcrt.dll; exit is a function that ends the process, it is defined in msvcrt.dll
        ; msvcrt.dll contains exit, printf and all the other important C-runtime functions
segment  data use32 class=data ; the data segment where the variables are declared
	a dd 125
	b db 2
	c dw 15
	d db 200
	e dq 80
segment  code use32 class=code ; code segment
start:
	;for computing b/c, we convert b from byte to doubleword, so that we can divide it by the word c
	mov al, [b]
	cbw ;signed conversion from al to ax
	cwd ;signed conversion from ax to dx:ax
	;dx:ax = b
	idiv word [c] ;signed division dx:ax by c
	;ax=b/c
	;the quotient of the division is in ax (the remainder is in dx, but we only use the quotient in the further computations)

	mov bx, ax ;we save b/c in bx so that we can use ax for multiplying d and 2
	mov al, 2
	imul byte [d] ;ax=d*2

	sub bx, ax ;bx=b/c-d*2
	; we convert the word bx to doubleword so that we can add it with the doubleword a
	mov ax, bx
	cwd ; signed conversion from ax to dx:ax
	;dx:ax=b/c-d*2

	mov bx, word [a]
	mov cx, word [a+2] ;cx:bx=a

	add ax, bx
	adc dx, cx ;the result of a + b / c - d * 2 is in dx:ax

	push dx
	push ax
	pop eax ;eax = a + b / c - d * 2
	cdq ;edx:eax = a + b / c - d * 2

	sub eax, dword [e]
	sbb edx, dword [e+4] ;edx:eax = a + b / c - d * 2 - e

	push   dword 0 ;saves on stack the parameter of the function exit
	call   [exit] ; function exit is called in order to end the execution of the program

Problems

Write a program in assembly language that computes one of the following arithmetic expressions, considering the following domains for the variables (in the unsigned and signed representation).

Additions, subtractions

a - byte, b - word, c - double word, d - qword - Unsigned representation

  1. c-(a+d)+(b+d)
  2. (b+b)+(c-a)+d
  3. (c+d)-(a+d)+b
  4. (a-b)+(c-b-d)+d
  5. (c-a-d)+(c-b)-a
  6. (a+b)-(a+d)+(c-a)
  7. c-(d+d+d)+(a-b)
  8. (a+b-d)+(a-b-d)
  9. (d+d-b)+(c-a)+d
  10. (a+d+d)-c+(b+b)
  11. (d-c)+(b-a)-(b+b+b)
  12. (a+b+d)-(a-c+d)+(b-c)
  13. d-b+a-(b+c)
  14. (a+d)-(c-b)+c
  15. a+b-c+(d-a)
  16. c-a-(b+a)+c
  17. (c+c-a)-(d+d)-b
  18. (d+d)-a-b-c
  19. (d+d)-(a+a)-(b+b)-(c+c)
  20. (a+c)-b+a + (d-c)
  21. (c-a) + (b - d) +d
  22. (d+c) - (c+b) - (b+a)
  23. ((a + a) + (b + b) + (c + c)) - d
  24. ((a + b) + (a + c) + (b + c)) - d
  25. (a + b + c) - (d + d) + (b + c)
  26. (c-b+a)-(d+a)
  27. (a+c)-(d+b)
  28. d-(a+b)+(c+c)
  29. d+c-b+(a-c)
  30. (b+c+a)-(d+c+a)

a - byte, b - word, c - double word, d - qword - Signed representation

  1. (c+b+a)-(d+d)
  2. (c+b)-a-(d+d)
  3. (b+b+d)-(c+a)
  4. (b+b)-c-(a+d)
  5. (c+b+b)-(c+a+d)
  6. c-(d+a)+(b+c)
  7. (c+c+c)-b+(d-a)
  8. (b+c+d)-(a+a)
  9. a-d+b+b+c
  10. b+c+d+a-(d+c)
  11. d-(a+b+c)-(a+a)
  12. (a-b-c)+(d-b-c)-(a-d)
  13. (b-a+c-d)-(d+c-a-b)
  14. c-b-(a+a)-b
  15. c+a+b+b+a
  16. (d-a)-(a-c)-d
  17. (c+d-a)-(d-c)-b
  18. (d-b)-a-(b-c)
  19. (d+a)-(c-b)-(b-a)+(c+d)
  20. a-b-(c-d)+d
  21. d-a+(b+a-c)
  22. c+b-(a-d+b)
  23. a + b + c + d - (a + b)
  24. (a + b + c) - d + (b - c)
  25. (a + b - c) + (a + b + d) - (a + b)
  26. (c-d-a)+(b+b)-(c+a)
  27. (d+d-c)-(c+c-a)+(c+a)
  28. c+d-a-b+(c-a)
  29. (a+a)-(b+b)-(c+d)+(d+d)
  30. d-a+c+c-b+a

Multiplications, divisions - Unsigned representation and signed representation

  1. c+(a*a-b+7)/(2+a), a-byte; b-doubleword; c-qword
  2. 2/(a+b*c-9)+e-d; a,b,c-byte; d-doubleword; e-qword
  3. (8-a*b*100+c)/d+x; a,b,d-byte; c-doubleword; x-qword
  4. (a*2+b/2+e)/(c-d)+x/a; a-word; b,c,d-byte; e-doubleword; x-qword
  5. (a+b/c-1)/(b+2)-x; a-doubleword; b-byte; c-word; x-qword
  6. x+a/b+c*d-b/c+e; a,b,d-byte; c-word; e-doubleword; x-qword
  7. (a-2)/(b+c)+a*c+e-x; a,b-byte; c-word; e-doubleword; x-qword
  8. 1/a+200*b-c/(d+1)+x/a-e; a,b-word; c,d-byte; e-doubleword; x-qword
  9. (a-b+c*128)/(a+b)+e-x; a,b-byte; c-word; e-doubleword; x-qword
  10. d-(7-a*b+c)/a-6+x/2; a,c-byte; b-word; d-doubleword; x-qword
  11. (a+b)/(2-b*b+b/c)-x; a-doubleword; b,c-byte; x-qword
  12. (a*b+2)/(a+7-c)+d+x; a,c-byte; b-word; d-doubleword; x-qword
  13. x-(a+b+c*d)/(9-a); a,c,d-byte; b-doubleword; x-qword
  14. x+(2-a*b)/(a*3)-a+c; a-byte; b-word; c-doubleword; x-qword
  15. x-(a*b*25+c*3)/(a+b)+e; a,b,c-byte; e-doubleword
  16. x/2+100*(a+b)-3/(c+d)+e*e; a,c-word; b,d-byte; e-doubleword; x-qword
  17. x-(a*a+b)/(a+c/a); a,c-byte; b-doubleword; x-qword
  18. (a+b*c+2/c)/(2+a)+e+x; a,b-byte; c-word; e-doubleword; x-qword
  19. (a+a+b*c*100+x)/(a+10)+e*a; a,b,c-byte; e-doubleword; x-qword
  20. x-b+8+(2*a-b)/(b*b)+e; a-word; b-byte; e-doubleword; x-qword
  21. (a*a/b+b*b)/(2+b)+e-x; a-byte; b-word; e-doubleword; x-qword
  22. a/2+b*b-a*b*c+e+x; a,b,c-byte; e-doubleword; x-qword
  23. (a*b-2*c*d)/(c-e)+x/a; a,b,c,d-byte; e-word; x-qword
  24. a-(7+x)/(b*b-c/d+2); a-doubleword; b,c,d-byte; x-qword
  25. (a*a+b+x)/(b+b)+c*c; a-word; b-byte; c-doubleword; x-qword
  26. (a*a+b/c-1)/(b+c)+d-x; a-word; b-byte; c-word; d-doubleword; x-qword
  27. (100+a+b*c)/(a-100)+e+x/a; a,b-byte; c-word; e-doubleword; x-qword
  28. x-(a*100+b)/(b+c-1); a-word; b-byte; c-word; x-qword
  29. (a+b)/(c-2)-d+2-x; a,b,c-byte; d-doubleword; x-qword
  30. a*b-(100-c)/(b*b)+e+x; a-word; b,c-byte; e-doubleword; x-qword
